Product Details:
|
Name: | 7 Inch Metal Cutting Disc | Size: | 180x6x22mm 7 Inch |
---|---|---|---|
Material: | A, WA,C | HS CODE: | 68042210 |
Model Number: | T41/T42 | Usage: | Metal ,Stainless Steel,steel |
Color: | Green, Red, Yellow.Black | Packing: | As Normal |
High Light: | TCO 7 Inch Metal Cutting Disc,T42 7 Inch Metal Cutting Disc,hs 68042210 7 inch metal cut off wheel |

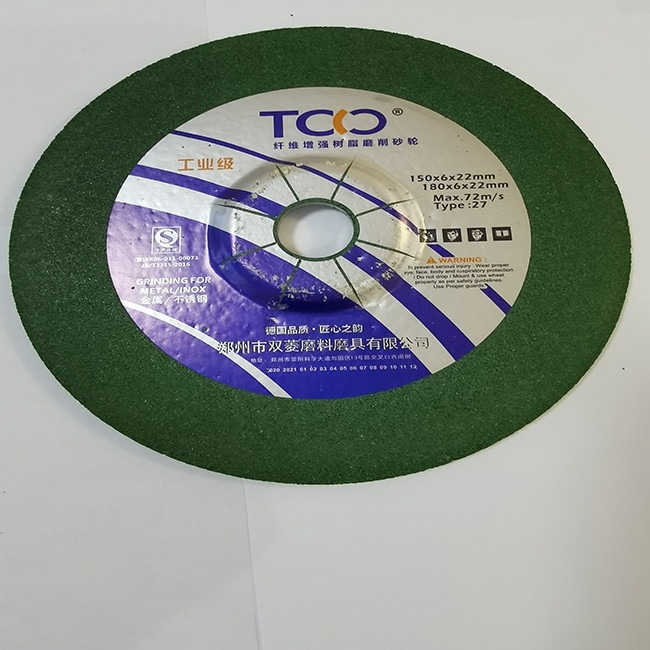

Industrial 180x6x22mm 7 Inch Metal Cutting Disc Large Diameter
1: 7 Inch Metal Cutting Disc Application
Standard 7 Inch Metal Cutting Disc for working on castings and steel. New quality Soft standard cutting wheel for working on aluminium and all other non-ferrous metals.The wheel is suitable for cutting marble, granite and other stones, concrete etc.
2: Metal Cutting Disc Specification
Size
|
Out Packing | Inner Packing | Packing Size | Max Speed |
107x1.2x16mm | 800,900, or 1000pcs | 100pcs | 60x25x21Cm | 72-80M/S |
125X1.2X22mm | 600Pcs | 50 or 100pcs | 37x27x15Cm | 72-80M/S |
180x1.6x22mm | 200Pcs | 25 Pcs | 39.5x19.5x24.5Cm | 72-80M/S |
300X2.5X25mm | 30Pcs | 30Pcs | 31x31x9Cm | 72-80M/S |
355X2.5X25mm | 30Pcs | 30 Pcs | 36x36x9 Cm | 72-80M/S |
3: Size of Metal Cutting Disc
100x2.5x16mm, 100x6x16mm, 107x1.2x16mm, 125x1.0x22.23mm,125x1.2x22mm, 125x1.6x22.23mm, 125x2.5x22mm, 125x6x22mm, 150x6x22mm, 180x6x22mm,150x(1.6/1.8/2.0/2.5)x22.23mm, 180x(1.6/1.8/2.0/2.5)x22.23mm, 230x(1.8/2.0/2.5)x22.23mm , 300x2x25.4mm, 350x2.5x25.4mm, 400 x2.5x25.4mm.
4: Storage Conditions
During storage, grinding wheels must not be subjected to:
.Exposure to humidity,water or other liquids
.Freezing temperatures
.Any temperature low enough to cause the formation of condensation on the wheels when moving from storage to an area of high temperature.
5: Main Features of 7 Inch Metal Cutting Disc
1. Professional cutting tool for all kinds of iron and steel, casting and non-ferrous with high precision
2. High-performance cutting wheel with high attack level and long service life for easy working with low tool pressure
3. High-performance cutting wheel for increasing protection against corrosion for the processing of stainless steel with highest demands
4. High-performance cutting wheel for processing thin-walled profiles and pipes
