Product Details:
|
| Name: | Heavy Duty Metal Cutting Discs | Material: | A, WA,SIC |
|---|---|---|---|
| Size: | 4 -14Inch | TOOL: | Angle Grinder |
| Usage: | Stainless Steel | OEM: | Accept |
| Layer: | Double Layer | Place Of Origin: | HENAN,CHINA |
| High Light: | LIDA 2.5mm heavy duty cut off wheel,SIC WA heavy duty cut off wheel,LIDA TCO stainless steel cutting wheel |
||

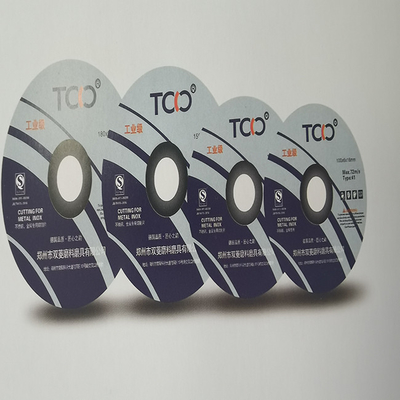

Heavy Duty Metal Cutting Discs Introduction
Proprietary aluminum oxide grain for long life and fast cutting.Cut off Wheel is fully reinforced with 2 bonded sheets of Fiberglass mesh for added safety and durability.
Wear all applicable safety gear when using these discs (eyes/ears/face/hands/body/etc).
Heavy Duty Metal Cutting Discs Specification
| Size (DXTXH) | Packing (CTN) | Max Speed | |||
| MM | INCH | PCS | GW(KG) | R.P.M | M/S |
| 107x1.0x16 | 4"x3/64"x5/8" | 800 | 21 | 15200 | 80 |
| 100x1.6x16 | 4"x1/16"x5/8" | 800 | 23 | 15200 | 80 |
| 100x2.5x16 | 4"x2/32"x5/8" | 600 | 20 | 15200 | 80 |
| 115x1.0x22.2 | 4.5"x3/64"x7/8" | 600 | 19 | 13300 | 80 |
| 115x1.6x22.2 | 4.5"x1/16"x7/8" | 600 | 24 | 13300 | 80 |
| 115x3.0x22.2 | 4.5"x1/8"x7/8" | 300 | 23 | 13300 | 80 |
| 125x1.0x22.2 | 5"x3/64"x7/8" | 600 | 22 | 12200 | 80 |
| 125x1.6x22.2 | 5"x1/16"x7/8" | 600 | 27 | 12200 | 80 |
| 125x3.0x22.2 | 5"x1/8"x7/8" | 300 | 28 | 13300 | 80 |
| 150x1.6x22.2 | 6"x1/16"x7/8" | 400 | 25 | 10200 | 80 |
| 150x3.0x22.2 | 6"x1/8"x7/8" | 200 | 23 | 10200 | 80 |
| 180x1.8x22.2 | 7"x5/64"x7/8" | 300 | 28 | 8600 | 80 |
| 180x3.0x22.2 | 7"x1/8"x7/8" | 200 | 31 | 8600 | 80 |
| 230x1.8x22.2 | 9"x5/64"x7/8" | 150 | 24 | 6600 | 80 |
| 230x3.0x22.2 | 9"x1/8"x7/8" | 100 | 28 | 6600 | 80 |
| 250x3.0x25.4 | 10"x1/8"x1" | 30 | 10 | 6150 | 80 |
| 305x3.2x25.4 | 12"x1/8"x1" | 30 | 14 | 5100 | 80 |
| 355x2.5x25.4 | 14"x2/32"x1" | 30 | 18 | 4400 | 80 |
| 355x3.2x25.4 | 14"x1/8"x1" | 25 | 18 | 4400 | 80 |
| 405x3.0x25.4 | 16"x1/8"x1" | 25 | 23 | 3800 | 80 |
| 405x3.0x32 | 16"x1/8"x5/4" | 25 | 23 | 3800 | 80 |
Heavy Duty Metal Cutting Discs Usage
Heavy Duty Metal Cutting Discs are perfect for super-fast, clean cutting in carbon steel, stainless steel, pipe, iron, copper and all other ferrous metals.
Storage Conditions
During storage, grinding wheels must not be subjected to:
.Exposure to humidity,water or other liquids
.Freezing temperatures
.Any temperature low enough to cause the formation of condensation on the wheels when moving from storage to an area of high temperature.
Heavy Duty Metal Cutting Discs Main Features
1) Professional cutting tool for all kinds of iron and steel, casting and non-ferrous with high precision
2) High performance cutting wheel with high attack level and long service life for easy working with low tool pressure
3) High performance cutting wheel with Fe/S/Cl content ≤ 0,1% for increasing protection against corrosion for the processing of stainless steel with highest demands
