Product Details:
|
Name: | Aluminum Cutting Disc 14 Inch | Material: | A, WA,SIC |
---|---|---|---|
Size: | 355x3.2x25.4mm | TOOL: | Angle Grinder |
Type: | Steel Cut Off Wheel | OEM: | Accept |
Layer: | Two Layer | Place Of Origin: | HENAN,CHINA |
High Light: | 405mm fiberglass Steel Cut Off Wheel,WA SIC Steel Cut Off Wheel,SIC 25.4mm aluminum cutting disc |

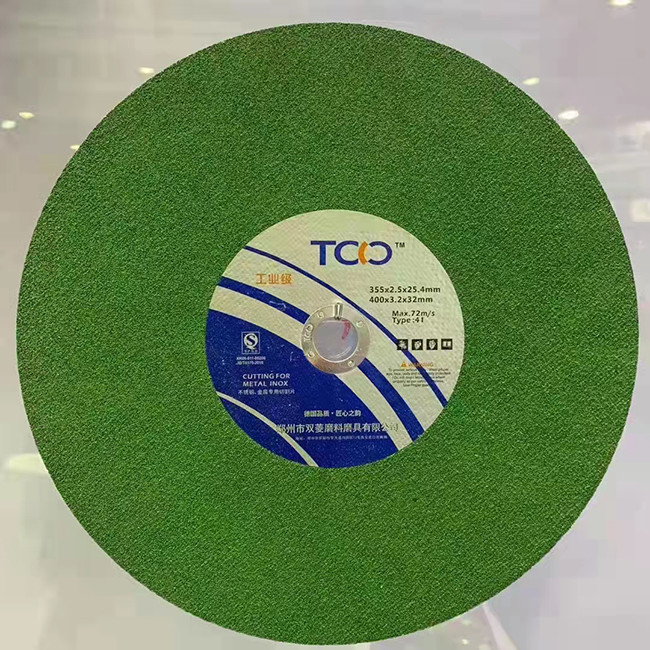

Introduction of Aluminum Cutting Disc 14 Inch
Specification of Aluminum Cutting Disc
Size (DXTXH) | Packing (CTN) | Max Speed | |||
MM | INCH | PCS | GW(KG) | R.P.M | M/S |
107x1.0x16 | 4"x3/64"x5/8" | 800 | 21 | 15200 | 80 |
100x1.6x16 | 4"x1/16"x5/8" | 800 | 23 | 15200 | 80 |
100x2.5x16 | 4"x2/32"x5/8" | 600 | 20 | 15200 | 80 |
115x1.0x22.2 | 4.5"x3/64"x7/8" | 600 | 19 | 13300 | 80 |
115x1.6x22.2 | 4.5"x1/16"x7/8" | 600 | 24 | 13300 | 80 |
115x3.0x22.2 | 4.5"x1/8"x7/8" | 300 | 23 | 13300 | 80 |
125x1.0x22.2 | 5"x3/64"x7/8" | 600 | 22 | 12200 | 80 |
125x1.6x22.2 | 5"x1/16"x7/8" | 600 | 27 | 12200 | 80 |
125x3.0x22.2 | 5"x1/8"x7/8" | 300 | 28 | 13300 | 80 |
150x1.6x22.2 | 6"x1/16"x7/8" | 400 | 25 | 10200 | 80 |
150x3.0x22.2 | 6"x1/8"x7/8" | 200 | 23 | 10200 | 80 |
180x1.8x22.2 | 7"x5/64"x7/8" | 300 | 28 | 8600 | 80 |
180x3.0x22.2 | 7"x1/8"x7/8" | 200 | 31 | 8600 | 80 |
230x1.8x22.2 | 9"x5/64"x7/8" | 150 | 24 | 6600 | 80 |
230x3.0x22.2 | 9"x1/8"x7/8" | 100 | 28 | 6600 | 80 |
250x3.0x25.4 | 10"x1/8"x1" | 30 | 10 | 6150 | 80 |
305x3.2x25.4 | 12"x1/8"x1" | 30 | 14 | 5100 | 80 |
355x2.5x25.4 | 14"x2/32"x1" | 30 | 18 | 4400 | 80 |
355x3.2x25.4 | 14"x1/8"x1" | 25 | 18 | 4400 | 80 |
405x3.0x25.4 | 16"x1/8"x1" | 25 | 23 | 3800 | 80 |
405x3.0x32 | 16"x1/8"x5/4" | 25 | 23 | 3800 | 80 |
Usage of Aluminum Cutting Disc 14 Inch
Aluminum Cutting Disc 14 Inch is Used for general purpose cutting of stainless steel, carbon steel, aluminum. Fast cool cutting allows the operator to work with minimum pressure. Reduced heat affected zone during cutting minimizes burr creation. Its highly refined ingredients will not contaminate stainless steel giving it a long-lasting and perfect finish.
Storage Conditions
During storage, grinding wheels must not be subjected to:
.Exposure to humidity,water or other liquids
.Freezing temperatures
.Any temperature low enough to cause the formation of condensation on the wheels when moving from storage to an area of high temperature.
Main Features
1) Professional cutting tool for all kinds of iron and steel, casting and non-ferrous with high precision
2) High performance cutting wheel with high attack level and long service life for easy working with low tool pressure
3) High performance cutting wheel with Fe/S/Cl content ≤ 0,1% for increasing protection against corrosion for the processing of stainless steel with highest demands
