Product Details:
|
| Name: | 14" Grinder Metal Cutting Wheel | Material: | A C,SIC |
|---|---|---|---|
| Size: | 355x2.5x25.4 Mm | Colour: | Green, Black, Yellow, Red |
| Type: | Abrasive Disc | Use: | Metal , Steel |
| Tool: | Angle Grinder | Max Speed: | 80m/s |
| High Light: | TCO metal steel cutting disc,355mm metal steel cutting disc,2.5mm angle grinder discs for metal |
||

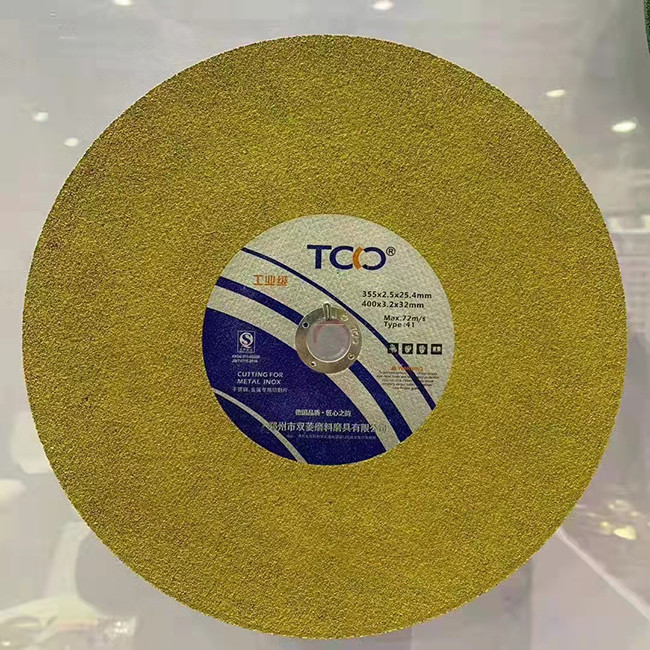

355x2.5x25.4 Mm 14" Grinder Metal Cutting Wheel For Metal , Steel
14" Grinder Metal Cutting Wheel Application
14" Grinder Metal Cutting Wheel is widely applied in cutting metal materials, such as rust and acid-proofed steels;high tensile / high-alloyed; steels; hardened steels; hardox; high tensile metal sheets; plastic laminated metal sheet.
Feature of 14" Grinder Metal Cutting Wheel
Special fiberglass nets with strong safety
MPAcertification germanTUV france BV certification
After-sales service
guarantee for one year
Grinder Metal Cutting Wheel Details Form
| Size (DXTXH) | Packing (CTN) | Max Speed | |||
| MM | INCH | PCS | GW(KG) | R.P.M | M/S |
| 107x1.0x16 | 4"x3/64"x5/8" | 800 | 21 | 15200 | 80 |
| 100x1.6x16 | 4"x1/16"x5/8" | 800 | 23 | 15200 | 80 |
| 100x2.5x16 | 4"x2/32"x5/8" | 600 | 20 | 15200 | 80 |
| 115x1.0x22.2 | 4.5"x3/64"x7/8" | 600 | 19 | 13300 | 80 |
| 115x1.6x22.2 | 4.5"x1/16"x7/8" | 600 | 24 | 13300 | 80 |
| 115x3.0x22.2 | 4.5"x1/8"x7/8" | 300 | 23 | 13300 | 80 |
| 125x1.0x22.2 | 5"x3/64"x7/8" | 600 | 22 | 12200 | 80 |
| 125x1.6x22.2 | 5"x1/16"x7/8" | 600 | 27 | 12200 | 80 |
| 125x3.0x22.2 | 5"x1/8"x7/8" | 300 | 28 | 13300 | 80 |
| 150x1.6x22.2 | 6"x1/16"x7/8" | 400 | 25 | 10200 | 80 |
| 150x3.0x22.2 | 6"x1/8"x7/8" | 200 | 23 | 10200 | 80 |
| 180x1.8x22.2 | 7"x5/64"x7/8" | 300 | 28 | 8600 | 80 |
| 180x3.0x22.2 | 7"x1/8"x7/8" | 200 | 31 | 8600 | 80 |
| 230x1.8x22.2 | 9"x5/64"x7/8" | 150 | 24 | 6600 | 80 |
| 230x3.0x22.2 | 9"x1/8"x7/8" | 100 | 28 | 6600 | 80 |
| 250x3.0x25.4 | 10"x1/8"x1" | 30 | 10 | 6150 | 80 |
| 305x3.2x25.4 | 12"x1/8"x1" | 30 | 14 | 5100 | 80 |
| 355x2.5x25.4 | 14"x2/32"x1" | 30 | 18 | 4400 | 80 |
| 355x3.2x25.4 | 14"x1/8"x1" | 25 | 18 | 4400 | 80 |
| 405x3.0x25.4 | 16"x1/8"x1" | 25 | 23 | 3800 | 80 |
| 405x3.0x32 | 16"x1/8"x5/4" | 25 | 23 | 3800 | 80 |
Storage Conditions
During storage, grinding wheels must not be subjected to:
.Exposure to humidity,water or other liquids
.Freezing temperatures
.Any temperature low enough to cause the formation of condensation on the wheels when moving from storage to an area of high temperature.
