Product Details:
|
| Product Name: | 4.5 Inch Cutting Discs | Material: | A, WA,SIC |
|---|---|---|---|
| Size: | 4.5 Inch | HS CODE: | 680422 |
| Color: | Green, Red, Yellow.Black | Usage: | Angle Grinder |
| Speed: | 80 M/s | Net: | Two Nets |
| High Light: | HS CODE 680422 Abrasive Cut Off Wheel,WA 4.5 Inch Abrasive Cut Off Wheel,SIC 4.5 inch angle grinder discs |
||
4.5 Inch Cutting Discs Introduction
High performance cutt-off wheel.Optimised too life for all steels,stainless steels and castiron.for
various cross sections, highest cuttingrate. low fatigue operation for theuser. Suitable also for high frequencymachines
4.5 Inch Cutting Discs Parameters
| Size (DXTXH) | Packing (CTN) | Max Speed | |||
| MM | INCH | PCS | GW(KG) | R.P.M | M/S |
| 107x1.0x16 | 4"x3/64"x5/8" | 800 | 21 | 15200 | 80 |
| 100x1.6x16 | 4"x1/16"x5/8" | 800 | 23 | 15200 | 80 |
| 100x2.5x16 | 4"x2/32"x5/8" | 600 | 20 | 15200 | 80 |
| 115x1.0x22.2 | 4.5"x3/64"x7/8" | 600 | 19 | 13300 | 80 |
| 115x1.6x22.2 | 4.5"x1/16"x7/8" | 600 | 24 | 13300 | 80 |
| 115x3.0x22.2 | 4.5"x1/8"x7/8" | 300 | 23 | 13300 | 80 |
| 125x1.0x22.2 | 5"x3/64"x7/8" | 600 | 22 | 12200 | 80 |
| 125x1.6x22.2 | 5"x1/16"x7/8" | 600 | 27 | 12200 | 80 |
| 125x3.0x22.2 | 5"x1/8"x7/8" | 300 | 28 | 13300 | 80 |
| 150x1.6x22.2 | 6"x1/16"x7/8" | 400 | 25 | 10200 | 80 |
| 150x3.0x22.2 | 6"x1/8"x7/8" | 200 | 23 | 10200 | 80 |
| 180x1.8x22.2 | 7"x5/64"x7/8" | 300 | 28 | 8600 | 80 |
| 180x3.0x22.2 | 7"x1/8"x7/8" | 200 | 31 | 8600 | 80 |
| 230x1.8x22.2 | 9"x5/64"x7/8" | 150 | 24 | 6600 | 80 |
| 230x3.0x22.2 | 9"x1/8"x7/8" | 100 | 28 | 6600 | 80 |
| 250x3.0x25.4 | 10"x1/8"x1" | 30 | 10 | 6150 | 80 |
| 305x3.2x25.4 | 12"x1/8"x1" | 30 | 14 | 5100 | 80 |
| 355x2.5x25.4 | 14"x2/32"x1" | 30 | 18 | 4400 | 80 |
| 355x3.2x25.4 | 14"x1/8"x1" | 25 | 18 | 4400 | 80 |
| 405x3.0x25.4 | 16"x1/8"x1" | 25 | 23 | 3800 | 80 |
| 405x3.0x32 | 16"x1/8"x5/4" | 25 | 23 | 3800 | 80 |
4.5 Inch Cutting Discs Main Features
1. High-quality corundum grit, resin bond, and fiber.
2. High cutting ratio.
3. Durable and sharp.

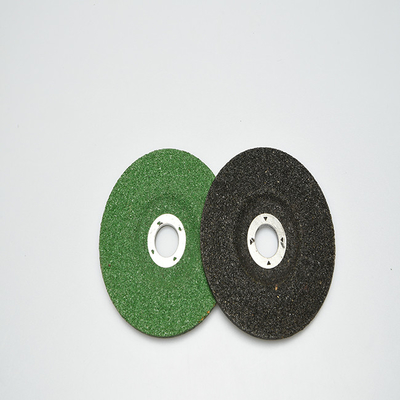

4.5 Inch Cutting Discs Pictures
4.5 Inch Cutting Discs Usage
Stainless steels, VA-steel sheet
Ductile cast iron pipes Grey cast
Structural steels in general
Structural al steels,high-strength
Storage Conditions
During storage, grinding wheels must not be subjected to:
.Exposure to humidity,water or other liquids
.Freezing temperatures
.Any temperature low enough to cause the formation of condensation on the wheels when moving from storage to an area of high temperature.
FAQ
Question: How many years have been in this field?
Answer: We are mainly deal with Abrasives, Cutting tools for more than ten years.
Question: Do you provide samples ? is it free or extra ?
Answer: Yes, free samples can be prepared for quality test , but costomers have to bare the cost of freight.
Question: How many days you need to prepare the samples?
Answer: We need 5-20 working days to prepare the samples
Question: Where is the loading port.
Answer: All ports in China, or as your requested.
