Product Details:
|
Material: | SC AZ AO | Application: | Stainless/Steel |
---|---|---|---|
Product Name: | Flap Disc | Size: | 4-7inch |
Shape: | Round Disc | Sample: | Free |
High Light: | AZ AO stainless Sanding Flap Discs,7 inch Sanding Flap Discs,Zirconia flexible flap disc |

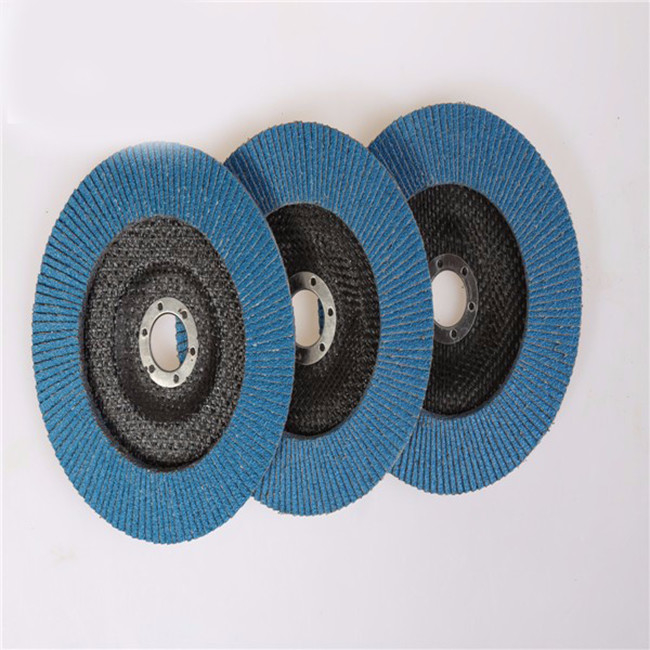

Zirconia Flexible Flap Disc For Polishing Stainless Steel Used Sanding Flap Discs
1: Specification:
Abrasive Grains of Abrasive flap disc:
A/O - Calcine Aluminium oide and normal Aluminium oxide coated, for alloy steel and low-alloy steel
Z/A - Zirconia Alumina coated, for high-alloy, stainless, and heat-treated steel; high-tensile, non ferrous metals
S/C - Silicon Carbidecoated, for marble, stone, glass, and non ferrous metal.
It significantly improves life, grain retention and fray resistance.It's produced with raw material, stable and extremely high efficiency.
Flap Discs are made from zirconia alumina, designed for high speed sanding and heavy duty removal, delivering fast and long lasting cut. Zirconia alumina abrasive provides extended service life and more cutting power than aluminum oxide, saving replacement costs and sanding time. Abrasive disc is made with fiberglass backing which supports a fast cut for grinding and finishing applications; offers extra durability and reinforcement. Overlapped abrasive strips offer more efficient sanding effect and longer service life than conventional fiber discs.
2:Product Details Form
Product Specification
|
Packing & Shipping
|
||
Item No.
|
TCO1100-881
|
Size of Packing
|
60x22x15cm
|
Max Speed
|
80M/S, R.P.M 13300 |
Qty/ctn
|
20 pcs
|
Series | TCO02 |
G.W.
|
10KGS
|
Logo
|
TCO or OEM brand
|
N.W.
|
9KGS
|
Use
|
Steel |
MOQ
|
3000 pcs
|
Certificate
|
C ACNASC
|
Loading Port
|
TIANJIN OR QINGDAO
|
HS code
|
6805100000
|
Payment Terms
|
T/T , L/C,
|
Sample
|
Free sample to send you
|
Delivery time
|
20 days after receive
the deposit
|
3:Usage
Type for Abrasive flap disc:
T-27 – Flat shape, Used for grinding flat surfaces. Most efficient when used at a 0-15 degree angle
T-29 –Conical or Tapered shape, most used for contour and edge.
Flap Discs can replace resin grinding wheel, it has strong elasticity, high tensile and bending strength, high grinding rate, low noise, suitable for inside weld and stamping parts fly-edge grinding.
Flap discs are used by fitted on electric or air-operated grinders,are used for grinding the workpieces surface, such as iron ,alloy ,copper ,zinc ,stainless steel ,wood rubber.
4:Attention:
Wear goggle, Wear earmuff, Follow safety rules, Wear protecting gloves, Donot use it freehand!
5:Application:
1.Bonded to extremely strong but durable fibreglass or plastic backing.
2.Fast ,aggressive action for high pressure grinding, high efficiency.
3.Blending and finishing all in one operation and will reduce process time, lower total grinding cost.
4.Maximum contact with work surface with out loading.
5.Consistent grinding and finishing performance.
6.Excellent performance and efficiencies on stainless and carbon steel application.
6:Main Features
1.Grind more smoothly than angle discs with less aggressive than angle discs it's the best choice for flat surface work when using it with an Angle Grinder
2.Built for long-life premium abrasive that works well on stainless steel, hard steel, titanium and various others.
3.Zirconia Flap Disc continually produces new sharp points, creating faster cutting and a longer lifespan than aluminum oxide varieties.

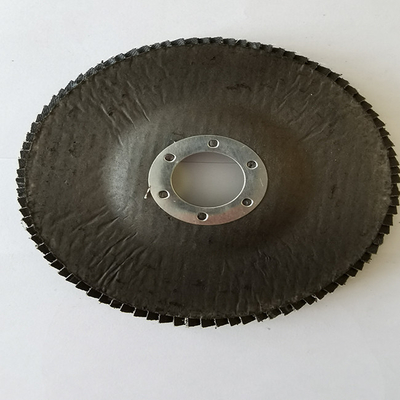

4.Flap Discs consist of sanding strips adhered to a strong fiberglass backing plate in an overlapping circluar pattern.
